EXT Ferro E-MX Fork Surron Talaria

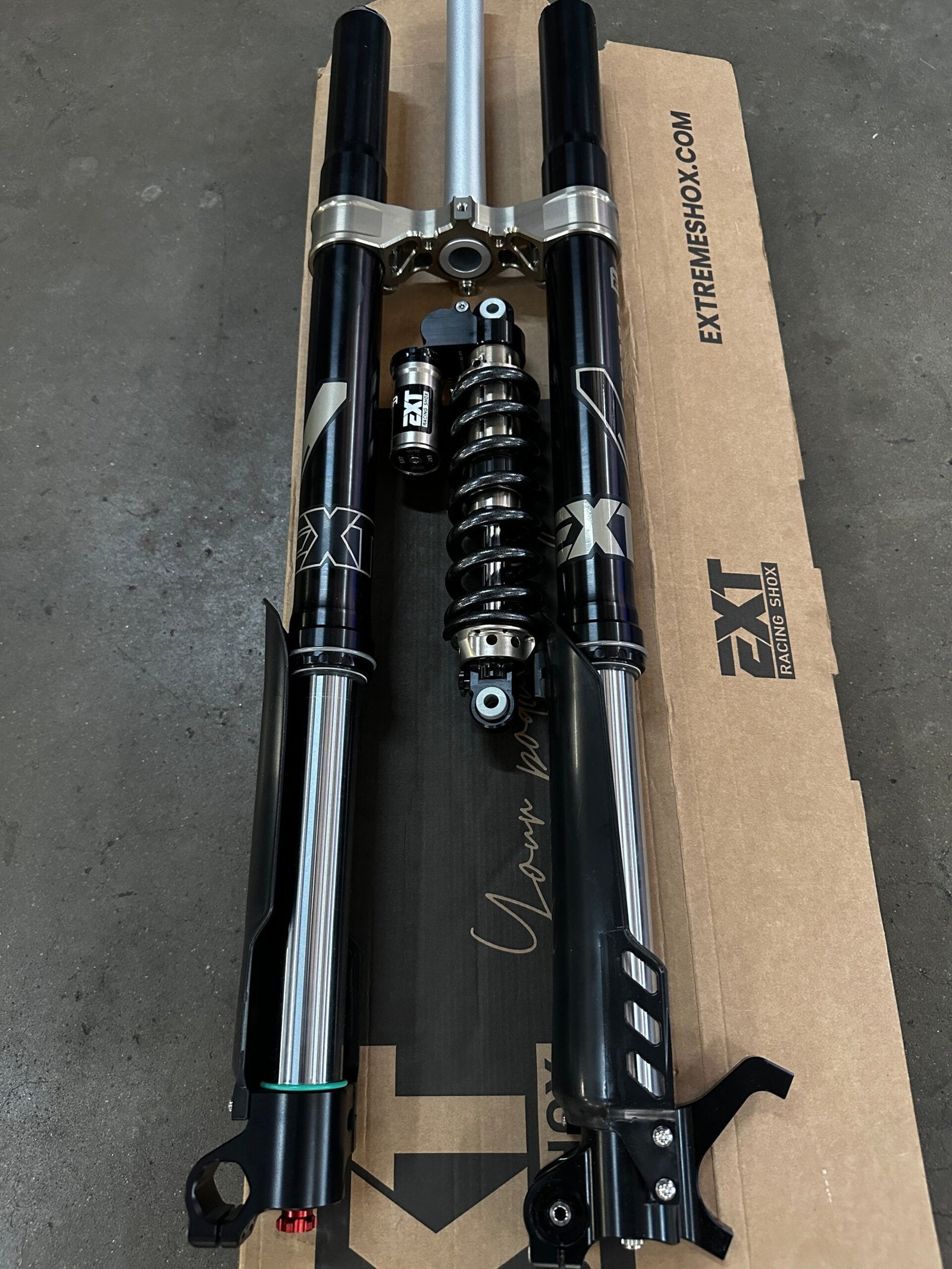

At EXT Racing Shox, the research and development of new technologies never stops. We are focused on progress, bringing the best solution to the market with the aim to satisfy the needs of the most demanding riders. Since the growing worldwide success of electric dirt bikes, we saw the opportunity to take our extraordinary decades-long know-how on dampers, implementing a new custom solution to achieve the highest performance products for our customers. Something that brings your E-MX to the next level! EXT Racing Shox is extremely proud to introduce the brand new FERRO USD 36, an upside-down 36mm stanchion fork which is going to complete our E-MX line-up. Hard heat-treated chrome moly steel stanchions (Superfinish surface treatment), 7000 series aluminum construction upper legs and a 205mm travel design with a dedicated triple clamp, make the core of the new 36mm USD fork, developed for minimum friction and high stiffness. Together with the popular ARMA MX, already known for its industry leading reliability and performance, you can now have access to the best upgrade suspensions package on the market, purposely built to boost the performance of your electric dirt-bike.   CORE FEATURES

• Robust dual crown inverted MX design (USD)
• 36mm Ø hard chromed steel stanchions (heat treated 42CrMo4) with Super finish surface treatment
• HS3 3- twin positive air system ¬+ 1 large negative self-balancing air chamber, allows for an optimum level of support through all the travel

• High flow 3-way cartridge damper system with independent high & low speed compression plus rebound damping adjustment.
• Super finish inner tube coating
• External pressure air release system on both legs
• Twin hexagonal floating axle, boost compatible ∅20mm
• Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on
• side loads)
• Large piston design for best damping control and separate IFP/coil energized compression valve
• No cavitation and low hysteresis
• Self-hydraulic cartridge bleeding
• Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance
• and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
• 205 mm of travel and 44 mm offset
• 200 mm post mount brake
• Weight 4000gr
• Pressure release one-way valves on both legs
• Compatible with stock fender design
• Boost Hub Spacing for more flexibility with after market wheel sets.
• NOTE: If you are running a stock wheel or a wheel that is not specifically designed for use with BOOST hubs you will need to install a rotor adaptor that is available HERE

HS3 The FERRO USD 36 fork uses the HS3 technology, the unique hybrid air spring system, already been famous with the appreciated ERA V2. Two separate positive air chambers work with one, high volume self-equalizing negative air chamber; HS3 is focused on mid-stroke support around the dynamic sag position while offering amazing sensitivity and bottom-out protection Fork Structure Dual Crown Structure: The robust double crown design in 7075 aluminum ensures maximum stiffness. Crown design is compatible with stock fender designs. Sliding Bushings: We looked at everything that needed a low friction solution to improve smoothness and sensitivity. This process took us back to our 14 World Rally Championship wins, that make EXT the most successful suspension manufacturer in WRC. Our new DU bushing material used in the new FERRO USD 36 fork are sized to a defined tolerances for each fork assembly and works in harmony with our dedicated EXT oil. This guarantees zero stiction and super low friction properties even when combined with high side loads. The dedicated DU guiding system made with a specific super long bushing overlap ensures the maximum guidance and the best torsional rigidity of the stanchions. (We’ve called it, CGB, Continuously Guided Bushing system which also helps to increase the dynamic stiffness). Wheel Axle: Twin hexagonal head floating wheel axle guarantees perfect wheel alignment, while assuring maximum torsional rigidity. High Flow Damper Cartridge  The new FERRO USD 36 inherits the best technologies that made famous our well-known ERA V2 and it adopts an innovative radial floating shaft guide in the damper cartridge with a Super finish surface treatment with new aeronautical seals, which takes the friction to the lowest possible level. EXT high-volume cartridge uses a high flow piston to generate control for your bike, an important performance upgrade for your riding. The large piston design allows the best damping control. The cartridge is also equipped with a bump valve design (HDRV – High Dynamic Response Valve) with 2 different shim stacks for mid and high speed and an Internal Floating Piston (IFP) guided and combined with a bespoke thrust bearing to enhance fast response and guidance. Our goal has always been to find a balance between all the internal cartridge pressures and through a long development process we made possible the optimization of the internal forces reaching low values of hysteresis and no cavitation. Orders Placed now for drop crowns will begin shipping in July 2023. Flat crown forks will begin shipping in the next couple weeks on a first come first serve basis. Note 1: For the Sur Ron if you are not on the most current model a head tube reinforcement clamp is recommended. This item is standard equipment on the current model year bikes. We have them available for purchase on our accessories page. Note 2: Early Orders of forks will not include frame bumpers as they are currently back ordered. Bumpers from stock your forks will work until we can provide the EXT bumpers at a later date.
